Model：DL-614

Inside Dimension：6900*3900*2700mm(L*W*H)

Outside Dimension：7000*5350*3400mm(L*W*H)

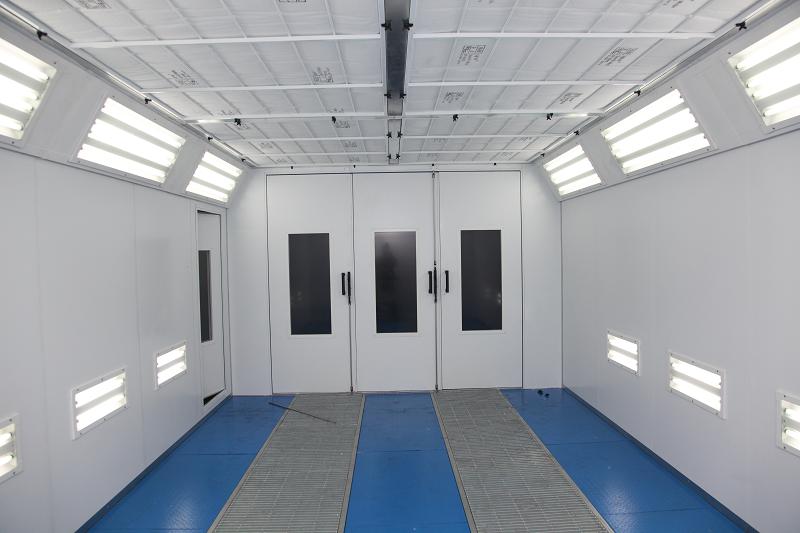

Main Door(W*H)：3 folds door, 3000×2600mm, it is bending steel without cover frame. This type is very strong and beautiful. Also equipped with Handle & Lock

Personal Door：1fold, 650*2000mm(W*H). Equipped with Handle & Anti-Explosion Lock

Wall Panels：1. High quality double construction insulation EPS panel thickness: 50mm   2. Galvanized steel roof panel

Basement and Floor：1. Galvanized steel assemble, Full metal foundation, height is 280mm   2. Five rows flat steel Grilles (galvanized)   3. 2 pieces of Ramps, each size 620*2000mm (W*L), diamond plate construction

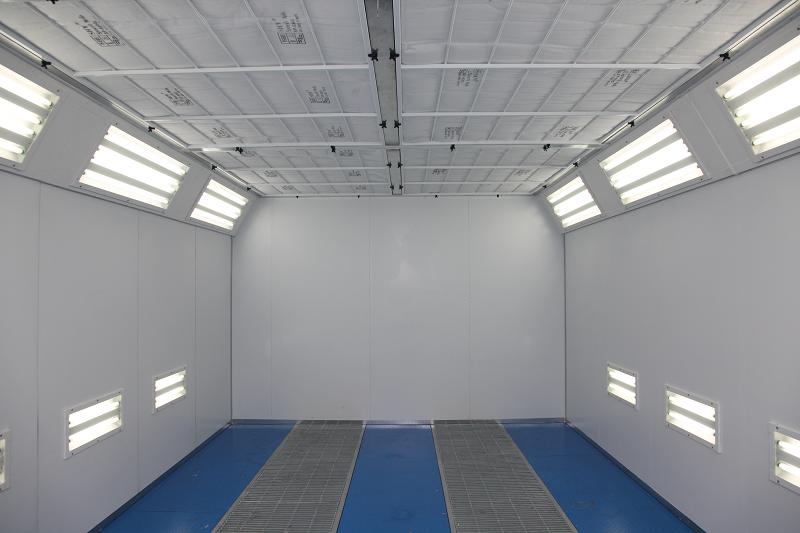

Lighting System：1. LED Ceiling lights: 8units*4pieces=32pieces*16W   2. LED Side lights: 6units*4pieces=24pieces*16W

Generator Setting Type：1. Side upper intake air, quadrate steel frame, coated steel, inside rock-wool insulation   2. Electric damper actuates from the spraying to baking cycle

Inlet Fan：2*4KW YDW double-intake centrifugal fans, total air capacity: 25000m³/h

Exhaust Fan：1*7.5KW YDW double-intake centrifugal fans, total air capacity: 15000m³/h

Heating System：1. 1set: RIELLO G20 diesel burner, heating productivity: 200000Kcal/h   2. Adopt high efficient heat-resistant stainless steel as cycling heat exchanger   3. 4-6 minutes (from 20 to 60℃) under baking status, max baking temperature is 80℃

Filter System：1. The primary filter can capture granules larger than 10μm, filtering rate＞83%   2. Ceiling filter can capture granules bigger than 4μm, filtering rate＞98%   3. Floor filter( fiberglass paint-stop filter ), filtering rate＞70%

Control System：Lighting switch, spraying, heat spraying, bakin, temperature controller, time setting, emergency stop

Total Power：16.5 KW (380V/220V, 50HZ/60HZ, 3 Phase)
